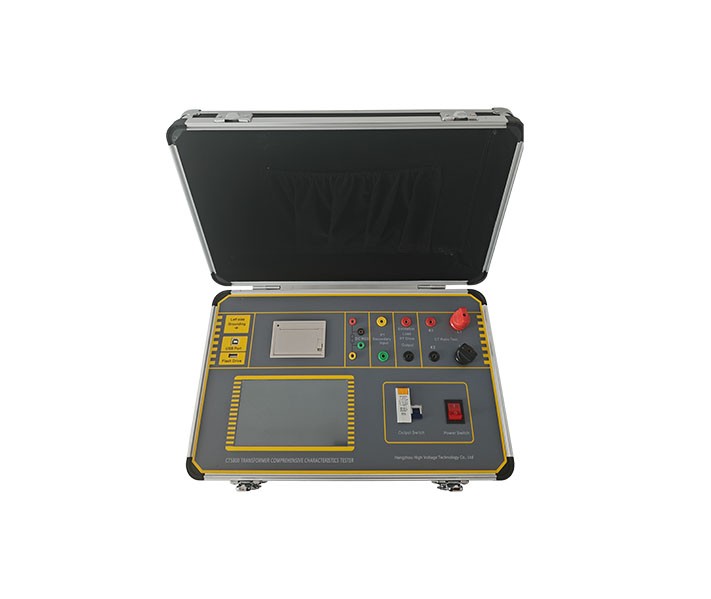

CT5800 TRANSFORMER COMPREHENSIVE CHARACTERISTICS TESTER

   ★ Volt-Ampere Characteristic Test: the maximum output voltage of a single machine is up to 2500V/3000V (Optional), which can be used to perform the volt-ampere characteristic test for 500KV 1A current transformer. Transformation Ratio Test: the maximum current output is up to 600A/1000A (Optional). The power supply of the equipment outputs the real voltage and current values, and forms the standard sine wave with a frequency of 50Hz, which can effectively simulate the real state of the transformer, conforming to the relevant national maintenance regulations.

          The minimum voltage regulation resolution can reach 0.13V

------------------－= Comprehensive Function =－------------------

★ Items that can be tested include CT/PT: “volt-ampere characteristics”, “5%, 10% and 15% error curves”, “transformation ratio, polarity”, “angle difference, ratio error”, “secondary DC resistance” and “secondary load”, “secondary circuit”, “secondary voltage withstand” and demagnetization function.

★ The tests satisfy various transformer standards such as GB1208 and GB1207, and are automatically selected according to the type and level of transformers.

★ Chinese input method provided in the 7-inch color touch screen allows you to enter the Chinese serial number.

★ Full-Chinese graphical interface, friendly and beautiful. The panel’s built-in printer allows you to print graphs and test data at any time.

★ A large-capacity memory provided can store 4000 groups of test data, and the data will never be lost in case of power failure;

★ After the test, the data can be stored in the USB flash disk and analyzed with software on the computer to generate the WORD report.

★ Online function is equipped to carry out the test via computer control instrument.

★ Automatic inflection point calculation; perfect data query, browsing, printing and deleting; built-in date/time.

★ Integrated single machine, with the weight as light as only 26Kg, easy to carry and perform the flow test.
