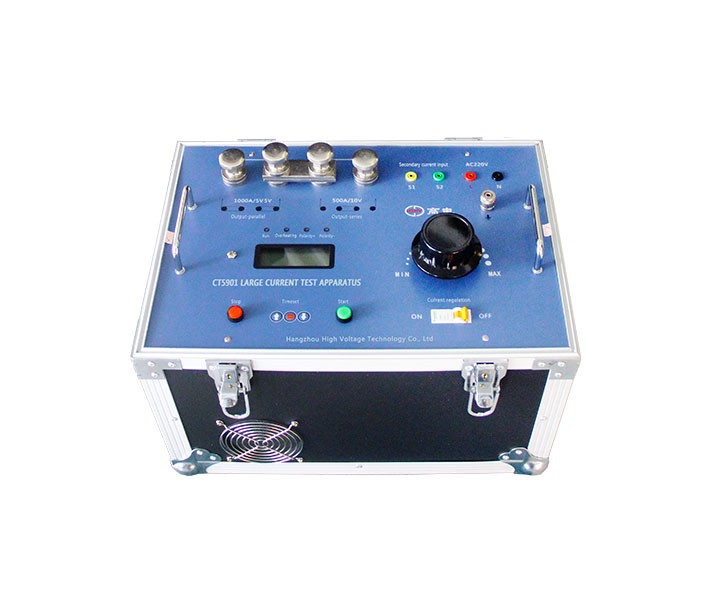

CT5901 LARGE CURRENT TEST APPARATUS

1.Intelligentize：Large current tester series adopts ARM CPU chip technology,Adopts LCD display, synchronous display output current and secondary current, the instrument with a stopwatch functions, convenient and practical。

2.Conform to the state maintenance procedures：Device output power are all real voltage and current value, and standard sine wave of waveform, frequency of 50-60 hz; Can truly effective simulation of the true state of transformer, comply with the relevant maintenance regulations of the state

3.Output current is big：220 v input, the maximum output current 0-1000 - a, very suitable for field repair.

4.Complete functions：Can detect CT variable polarity than CT secondary loop

5.Instrument span a wide range：ratio25000A／5A 、5000A／1A。

（1000AOutput as a reference）

 1.Input power: AC：240V·25A,60Hz

 2.Output current: AC：1000A·5V或500A·10V

 3.Output current waveform distortion: ≤5%

 4.LCD digital display，Display a secondary current and variable ratio, leds indicate polarity

Precision：True virtual value1%，

A current meter range：01000A，Resolution ratio：0.1A，；

The secondary current meter range measurement：0～5A, Resolution ratio：0.001A

5.Dual protection（The hardware and software protection）

6.Operating environment: Temperature-1040℃,Relative humidity<80%

7.Volume: 450×320×280mm3

8.Weight: 30Kg
